Comprehensive Guide to Pushbutton Switches

2025-06-26

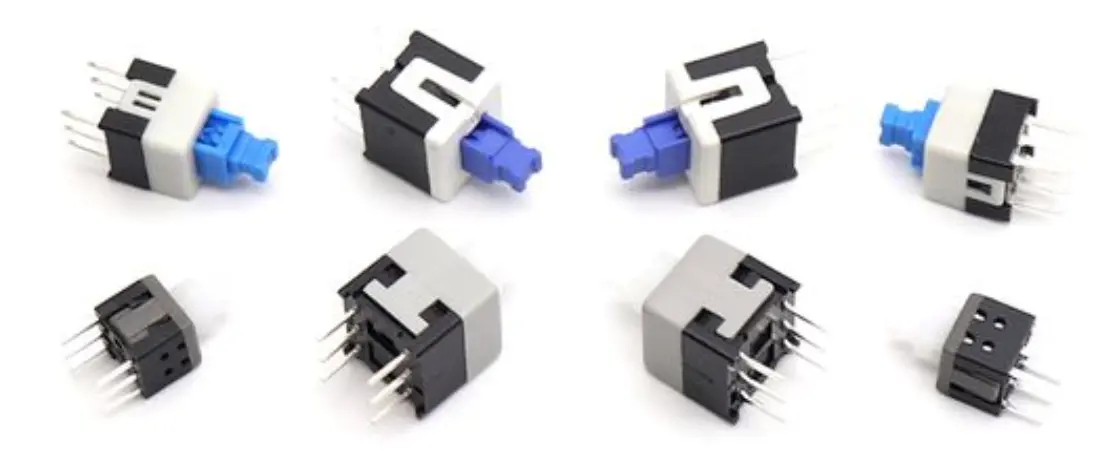

Pushbutton Switch.png

1. Core CharacteristICs

A Pushbutton Switch controls circuits via pressing operation, featuring:

  • Tactile Feedback: Travel 0.5~5mm, force 0.5~5N

  • Modular Design: Supports LED, seals, latching mechanisms

  • Safety Rating: Up to IP69K (resists pressure washing/chemicals)

2. Working Principles & Types

2.1 Contact Action
Type Circuit Behavior Applications
Momentary On when pressed, off when released Access control/keyboards
Latching Locks on first press, off on second Power Switches
2.2 Internal Structures

  • Metal Dome:

    • Beryllium copper, >1M cycles (contact resistance <50mΩ)

    • High-current (AC 250V/5A)

  • Conductive Rubber:

    • Carbon contacts, silent operation (<20dB)

    • Medical/consumer electronics

3. Key Specifications

Parameter Industrial Grade Consumer Grade
Electrical Life >500,000 cycles (resistive) >50,000 cycles
Insulation Resistance >100MΩ @500VDC >10MΩ
Dielectric Strength AC 2000V/1min AC 1000V/1min
Operating Temp -40°C~+85°C -20°C~+70°C

4. Special Variants

4.1 Illuminated Type

  • LED Integration:

    • Bi-color LEDs (Red/Green), 3~48VDC

    • Light pipes: PC/PMMA (>90% transmittance)

4.2 Explosion-Proof

  • ATEX/IECEx Certified:

    • Flameproof enclosure (Ex d IIC T6)

    • Stainless steel housing

4.3 Waterproof Sealed

  • Sealing Structure:

    • Silicone O-rings (20~30% compression)

    • Drain valve (IP68 @1m/30min)

5. Selection Guide

5.1 Circuit Matching

  • Low-Voltage Signals:

    • Gold-plated contacts (<20mΩ)

    • Latching type recommended

  • AC Power Circuits:

    • Silver alloy contacts (>5A), arc chutes

5.2 Mechanical Installation

  • Panel Cutout Tolerances:

    Button Ø(mm) Hole Ø(mm) Max Gap(mm)
    12 12.1~12.3 0.15
    16 16.1~16.4 0.20

  • Vibration Resistance:

    • Spring washers for >5G vibration

6. Typical Applications

  1. Industrial Control:

    • Emergency stop (red mushroom head, IEC 60947-5-5)

    • PLC console operation

  2. Transportation:

    • Subway door controls (with guard cover)

    • Vehicle dashboards (EMI-shielded)

  3. Medical Equipment:

    • Surgical bed adjustment (autoclavable)

    • Dialysis machine interfaces (ESD protection >15kV)

7. Maintenance & Troubleshooting

Failure Mode Root Cause Solution
Contact Welding Arc carbonization Replace AgCdO contacts
Sticking Button Dust ingress/lube loss Clean + silicone grease (Dow Corning EM-30L)
LED Failure Current-limiting resistor error
