Preventing Component Shifting During Lamination in Assemblies with Embedded Passives

I. Shift Mechanism Analysis

1. Thermal Stress Dominance
   $\mathrm{\Delta }x=\alpha \cdot \mathrm{\Delta }T\cdot L\cdot \frac{E_{sub}-E_{comp}}{E_{comp}}$

   • α: Material CTE

   • ΔT: Lamination temperature gradient (typICally >180℃)

   • L: Component size
     *Example: 0402 Capacitor (1mm) shifts up to 28μm between FR4 (CTE=14ppm) and ceramic capacitor (CTE=6ppm)*

2. Resin Flow Impact

   Stage	Resin Viscosity (cP)	Flow Rate (m/s)	Impact Force (N)
   Heating	5,000-8,000	0.02-0.05	0.3-0.8
   Pressurization	300-800	0.1-0.3	2.5-6.0

II. Anti-Shift Design Quadruple Strategy

1. Pad Structure Optimization

   [Standard Pad] → [Anti-Shift Pad]    Length: 1.2×comp → 1.5×comp    Anchor Points: Cross-slots/Micro-via array (Ø80μm, pitch 200μm)

   Effect: Shear resistance 3x higher

2. Positioning Reference System

   • Laser-etched fiducials: Accuracy ±5μm
     | Component-to-mark distance ≤10mm

3. CTE Matching Strategy

   Component Type	Recommended Substrate	CTE Diff (ppm)
   Ceramic Cap	Megtron 6	≤2.5
   Film Resistor	Isola 370HR	≤1.8
   Magnetic Inductor	Rogers 4835	≤3.2

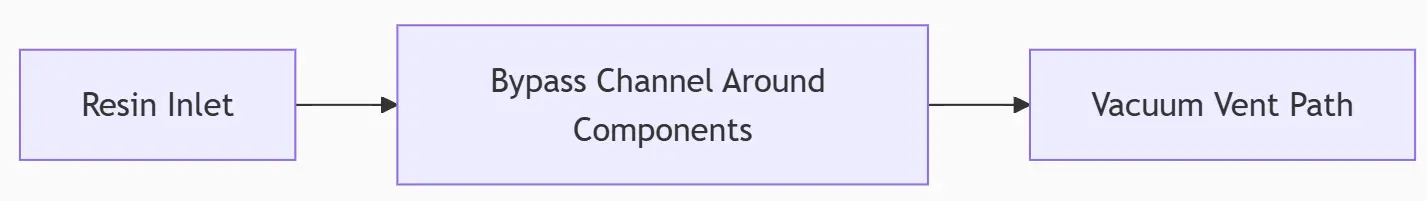

4. Lamination Flow Path Design

1. *Rule: Channel width=2×comp height, depth=1/3 Cu thickness*

III. Critical Lamination Process Controls

1. Temperature-Pressure Profile Optimization

   Stage 1: 30℃→100℃ @2℃/min  Pressure 0.3MPa    Stage 2: 100℃→180℃ @1℃/min  Pressure↑1.2MPa ← Critical suppression point    Stage 3: 180℃ soak 60min    Stage 4: Cool @1.5℃/min to 50℃

2. Vacuum-Assist Technology

   • Continuous vacuum ≤10Pa
     | Vacuum break technique: Release vacuum 3s before pressure application

IV. Shift Detection & Compensation

1. In-line Monitoring

   • Real-time X-ray imaging: Accuracy ±3μm

   • Thermal camera monitoring: Resolution 0.1℃

2. Compensation Algorithm

   python

   # ML-based shift prediction    offset = model.predict([[CTE_diff, viscosity, pressure]])    # Placement coordinate adjustment    placement_x = design_x - 0.7*offset

V. Case Study: Automotive ECU Module

Verification Methods:

1. SEM analysis of resin penetration interface

2. 3D Digital Image Correlation (3D-DIC) for thermal deformation

3. Compliance with IEC 61191-3:2017
