Selection Criteria for PCB Cleaning Processes: Aqueous vs. Solvent Cleaning

2025-08-09

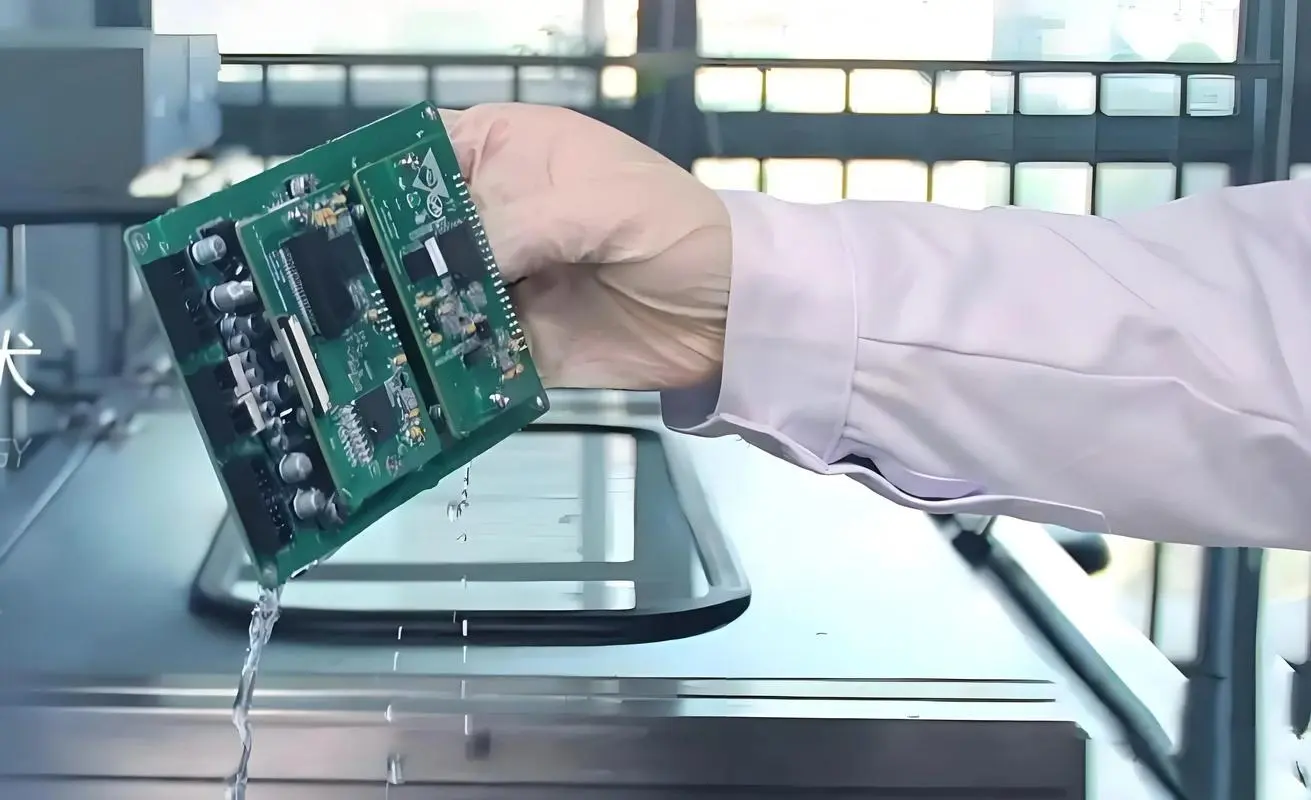

PCB Cleaning.jpeg

Abstract: The choICe between aqueous and solvent PCB cleaning impacts product reliability, environmental compliance, and cost. Key decision factors include contaminant type, component density, and environmental regulations. Aqueous cleaning targets polar residues (ionic flux), while solvents remove non-polar contaminants (rosin, oils). A comprehensive analysis follows:

1. Core Selection Criteria

Factor Aqueous Cleaning Solvent Cleaning
Contaminant Type Polar substances (flux salts, acids) Non-polar substances (rosin, resins, oils)
Component Density Suitable for ≥0.5mm pitch Effective for ≤0.3mm BGA undeRFill
Environmental Compliance RoHS/REACH compliant (VOC-free) Requires ODS management (e.g., CFC-113)
Operating Cost High CAPEX ($50k+) Solvent recycling ($20/L)
Drying Requirement DI rinse + hot air drying Low-temp evaporation (BP 40-80°C)

Key Metrics:

  • Cleaning Efficiency: Solvents remove >99.5% rosin (aqueous ≈95%);

  • Ionic Residue: Aqueous leaves <0.8μg NaCl/cm² (solvent ≈1.5μg/cm²).

2. Aqueous Cleaning Deep Dive

  1. Applications:

    • No-clean flux residues, water-soluble fluxes, white residues (metal salts).

  2. Typical Process:

3、Optimization:

Parameter Standard Value Failure Risk
DI Water Resistivity ≥18MΩ·cm ↑50% electrochemical migration
Rinse Pressure 0.5-1.5MPa ↑3% 0402 component loss
Drying Temperature 80±5°C (60°C for temp-sensitive) Plastic package cracking

3. Solvent Cleaning Deep Dive

  1. Solvent Selection:

    Solvent ODP (Eco-Friendliness) Boiling Point (°C) Target Contaminants
    Modified Alcohol (e.g., IPA) 0 82 Rosin, resins
    Hydrofluoroether (HFE) 0 61 BGA underfill oils
    Terpenes (pine derivatives) 0.02 156 Cured adhesives

  2. Process Window:

    • Vapor phase cleaning: Solvent vapor condensation (efficiency >99%);

    • Immersion ultrasound: 40kHz/5min cleans 0.1mm gaps.

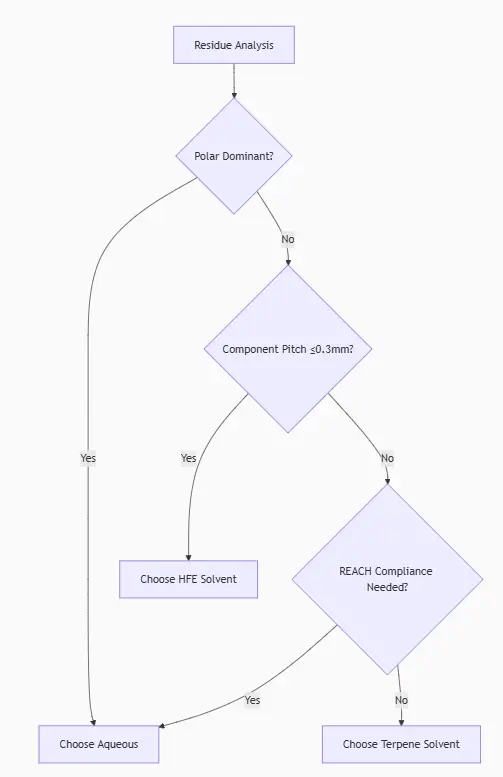

4. Decision Tree (Per IPC-CH-65B)

5. Failure Cases & Cost Analysis

  1. Aqueous Failures:

    • Incomplete drying in automotive ECU → Coating delamination ($500k loss);

    • Low DI resistivity (15MΩ·cm) → Ionic migration shorts (↑22% failure rate).

  2. Cost Model (Monthly 10k boards):

    Cost Item Aqueous Solvent
    Equipment Depreciation $3,000 $1,500
    Consumables (water/solvent) $800 $2,500
    Waste Disposal $200 $1,000
    Total $4,000 $5,000

Conclusion

PCB cleaning process selection follows "contaminant-first, compliance-backed" principles:

  • Aqueous: Preferred for polar residues and high eco-standards (Class 3), ensuring DI resistivity ≥18MΩ·cm;

  • Solvent: Ideal for non-polar residues and micro-components (e.g., 0.3mm BGA), with solvent ODP <0.05;

  • Hybrid Solution: For complex residues (e.g., ionic+rosin), use aqueous pre-wash → solvent fine-clean.
